LIT TWIN (AHF)

Description

WORKSHOPS OF THE HIGH FOREZ

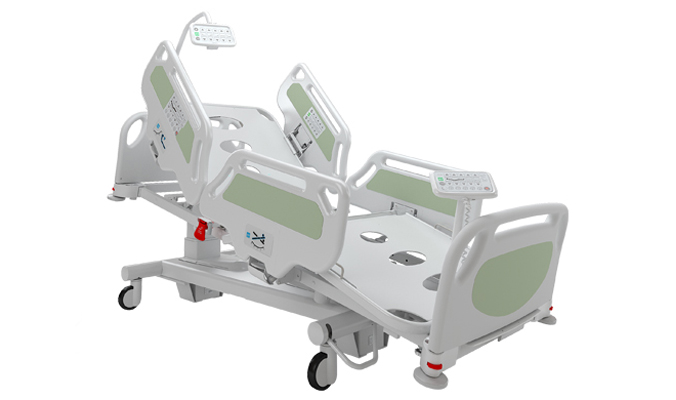

The TWIN design bed, designed for use in specialized hospitalization services and intensive therapy, meets the requirements of IEC 60601-2-52. It provides the patient and nursing staff with more stability and security thanks to a rugged design with an epoxy coated steel frame and two height-adjustable columns.

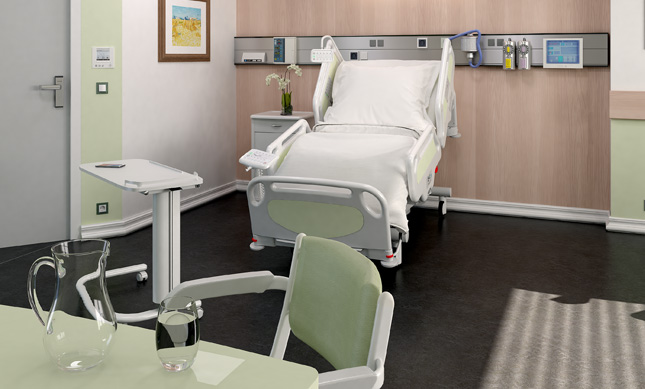

This high-tech bed, with easy cleaning and perfect disinfection, offers concrete solutions against nosocomial infections. It is available in several configurations combined with a wide range of colors for harmonious rooms.

The dimensions :

Minimum height: 430 mm Maximum capacity: 200 kg
Maximum height: 830 mm Supply voltage: 200 V – 50 Hz
Maximum down-tilt adjustment: 20 ° Operating voltage: 24 VDC
Maximum backrest adjustment: 70 ° Degree of protection IP: IPX4
Translation of the bust relief: 120 mm Working area: 2000 x 900 mm
Weight: 130 kg Electrical rating: 1B
